Dragon US T48 “Patton 48” in 1:35 scale

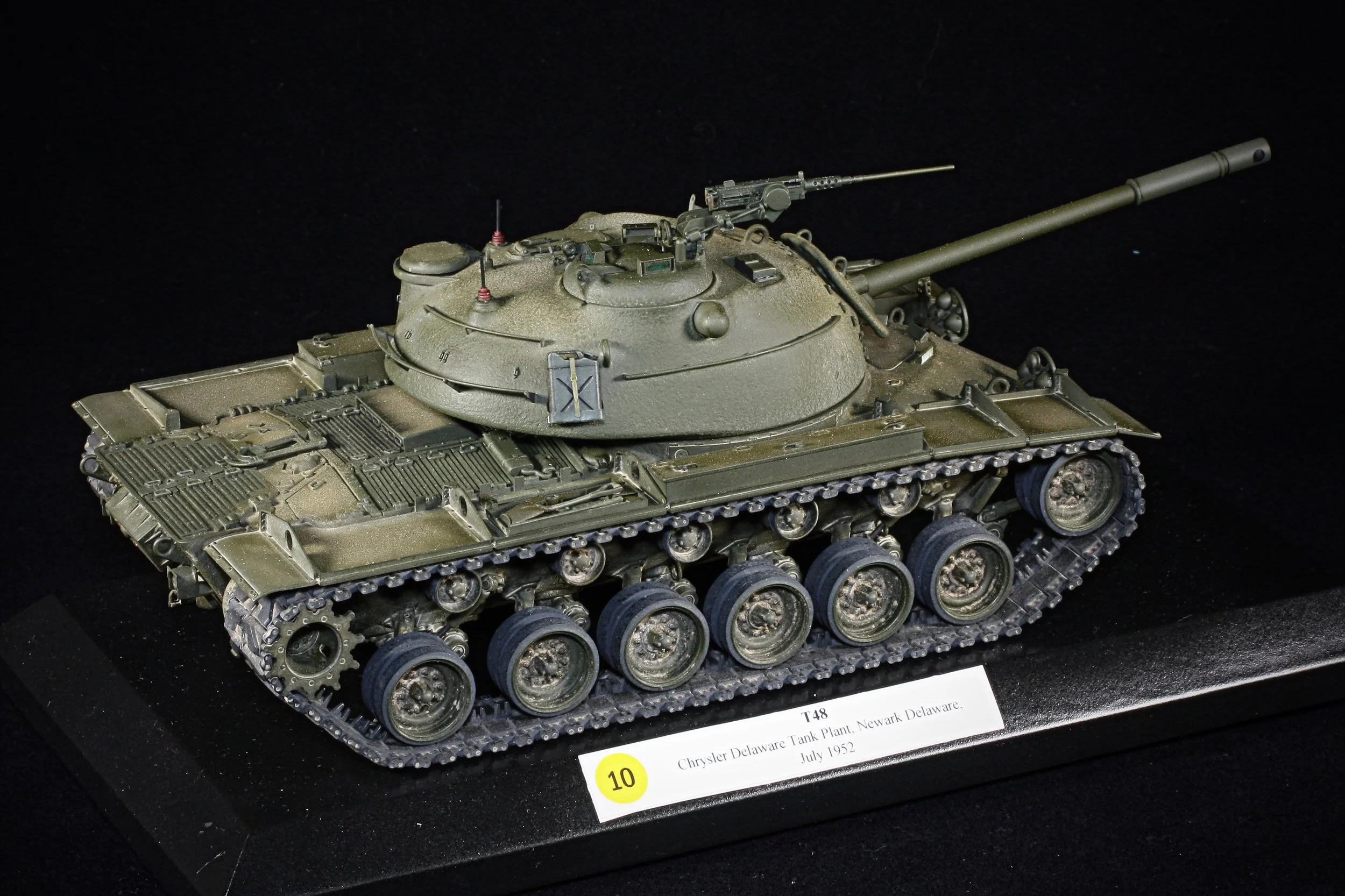

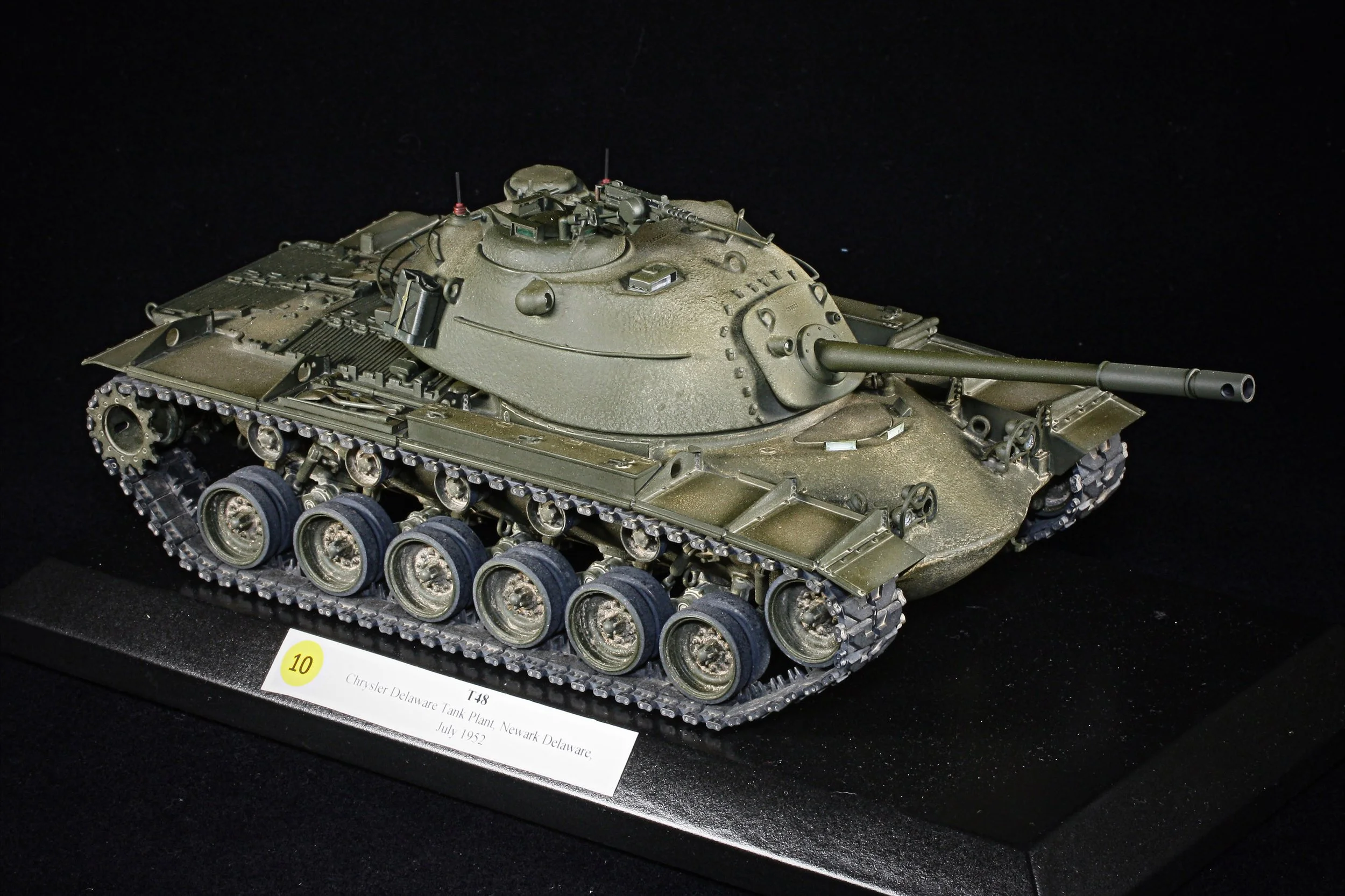

Finished in 2022. This model was built for a "Patton Tank" group build at our AMPS Central Virginia chapter. This represents a T48 from the first 500 produced. Reference photos and film from the Chrysler Tank Plant were used to document this early production T48 model.
At the time of the build, a boxed plastic model of the T48 did not exist. The Dragon T54E1 hull (early) & suspension and Dragon M48A1 turret were combined to make the model. More accurate resin wheels from DEF were installed, as well as AFV Club T97E1 separate-link tracks. I had an OOP T-48 resin conversion from Chesapeake Model Designs (CMD), which served as an additional donor for parts. Parts unique to the T48 were either robbed from the source kits or made from scratch.
Continued, below…
Engine hatch hinges modified to early production
Vertical ribs on engine hatch louvers removed for early production
Auxiliary generator engine exhaust moved to the early production position
Fendor box latches from Italeri's M47
Exhaust deflectors removed
New turret rails from styrene strip/rod
Gun sight cover from CMD
Jerry can & tool rack by D-Vision Miniature
Vane sight from styrene
General steel logo casting mark by Archer Fine transfers
New antenna bases made from styrene discs
.50 cal MG by Tasca
Footman loops by MJ Miniatures
Gun mantlet lifting rings from lead wire & cover snaps added
Gun muzzle brake from Italeri's M47
Added fender mounting strip below turret
Casting lugs added to lower hull rear
Tensioning idler wheel not installed
Towing pintle by CMD
